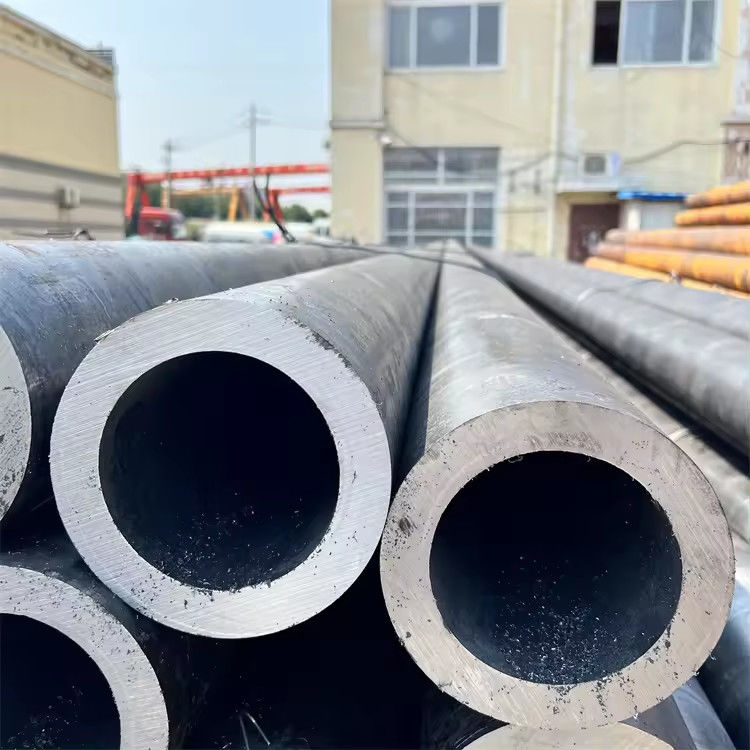

Astm A53 Sch40 24 Inch Api 5l X70 Psl2 Sch 60 HR Seamless Carbon Steel Pipe For Waterworks
Seamless steel pipes have many different classification methods. For example, the material is divided into carbon steel, alloy steel, etc.; according to the processing method, it is divided into cold drawing, cold rolling, hot rolling, etc.; according to the use, it is divided into ordinary pipes and special pipes, etc. Seamless steel pipes of different materials have different physical and chemical properties, such as pressure resistance, corrosion resistance, weldability, plasticity, etc.
Product Specification
| Product Name | Carbon Steel Seamless Pipe |
| Out Diameter | 13.7mm-914mm |
| Wall Thickness | 2mm-120mm |
| Length | 2m-12m |
| Producing Standard | * American ASME B36.10M, ASTM, API 5L, API 5CT * Japanese JIS * German DIN * Chinese GB * BS standard |
| Special specifications | Available according to customer's requirements and quantity |
| End Shape | Beveled end , plain end, varnished, or adding plastic caps to protect the two ends as per customer’s requirements |
| API SPEC 5CT | |||
| Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
| Casting | API 5CT | Ø114~219 x WT5.2~22.2 | J55, K55, N80, L80, P110 |
| Tubing | API 5CT | Ø48.3~114.3 x WT3.2~16 | J55, K55, N80, L80, P110 |
| API SPEC 5L | |||
| Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
| Line Pipes | API 5L | Ø10.3~1200 x WT1.0~120 | A, B, X42, X46, X52, X60, X70, X80, PSL1 / PSL2 |
| ASTM / ASME | |||
| Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
| Black and Hot-Dipped Zinc-Coated Seamless Steel Pipes | ASTM A53 | Ø10.3~1200 x WT1.0~150 | Gr.A, Gr.B, Gr.C |
| Seamless Carbon Steel Pipes for High Temperature Service | ASTM A106 | Ø10.3~1200 x WT1.0~150 | Gr.B, Gr.C |
| Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes | ASTM A179 | Ø10.3~426 x WT1.0~36 | Low Carbon Steel |
| Seamless Carbon Steel Boiler Tubes for High Pressure | ASTM A192 | Ø10.3~426 x WT1.0~36 | Low Carbon Steel |
| Seamless Cold-Drawn Intermediate Alloy Steel Heat-Exchanger and Condenser Tubes | ASTM A199 | Ø10.3~426 x 1.0~36 | T5, T22 |
| Seamless Medium-Carbon Steel Boiler and Superheater Tubes | ASTM A210 | Ø10.3~426 x WT1.0~36 | A1, C |
| Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat-Exchanger Tubes | ASTM A213 | Ø10.3~426 x WT1.0~36 | T5, T9, T11, T12, T22, T91 |
| Seamless Carbon and Alloy Steel for Mechanical Tubing | ASTM A333 | Ø1/4"~42" x WT SCH20~XXS | Gr.1, Gr.3, Gr.6 |
| Seamless and Welded Carbon Steel Pipes and Alloy Steel Pipes for Low Temperature Use | ASTM A334 | Ø1/4"~4" x WT SCH20~SCH80 | Gr.1, Gr.6 |
| Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes | ASTM A556 | Ø10.3~426 x WT1.0~36 | A2, B2 |
| DIN | |||
| Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
| Seamless Steel Tubes for Elevated Temperature | DIN 17175 | Ø10~762 x WT1.0~120 | St35.8, St45.8, 10CrMo910, 15Mo3, 13CrMo44, STPL340, STB410, STB510, WB36 |
| Seamless Steel Tubes | DIN 1629 / DIN 2391 | Ø13.5~762 x WT1.8~120 | St37.0, St44.0, St52.0, St52.3 |
| Seamless Steel Tubes | DIN 2440 | Ø13.5~165.1 x WT1.8~4.85 | St33.2 |
| Seamless Steel Pipes for Structural Purpose | DIN 2393 | Ø16~426 x WT1.0~36 | RSt34-2, RSt37-2, RSt44-2, St52 |
| BS | |||
| Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
| Seamless Steel Tubes for Machine Structure | BS 970 | Ø10~762 x WT1.0~120 | Carbon Steel |
| Seamless Steel Tubes for Boiler and Heat Exchangers | BS 3059 | Ø10~762 x WT1.0~120 | 360, 410, 440, 460, 490 |
Application
Carbon steel seamless pipes are extensively applied in the nuclear device, gas conveyance, petrochemical, shipbuilding and boiler industries, with characteristics of high corrosion resistance combined with suitable mechanical properties.
- Nuclear device
- Gas conveyance
- Petrochemical industries
- Shipbuilding and boiler industries
FAQ
Q1. Are you a manufacturer or trader?
We are a manufacturer, and we can have our own factory produced many steel products.
Q2. Whether your company supports Trade Assurance order?
Yes, we can (100% product quality protection; 100% on-time shipment protection; 100% payment protection)
Q3. Can we get the some samples? Any charges?
Yes, you can get available samples in our stock. If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.
Q4. How do we build up business relations with your company?
Send us your requirement which includes size, coating info, parameters, quantity, destination .
Q5. What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6. What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
Q7. How long is your delivery time?
Delivered within 15 days after receipt of deposit
