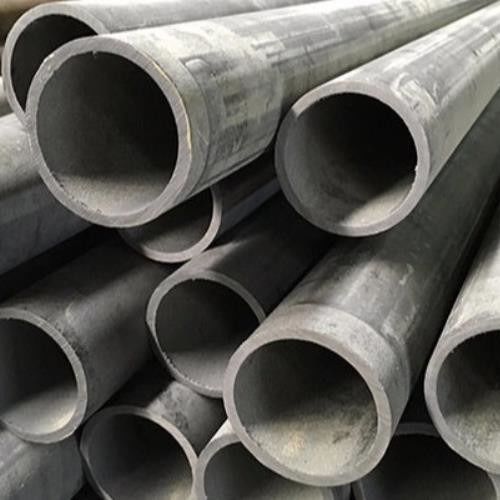

Name: 1 Inch 2 Inch 3" Seamless Mechanical Tubing Steel Grades Smooth Surface Aisi 1018 Pipes
Brand: 1 Inch 2 Inch 3" Seamless Mechanical Tubing Steel Grades Smooth Surface Aisi 1018 Pipes
SKU: 1 Inch 2 Inch 3" Seamless Mechanical Tubing Steel Grades Smooth Surface Aisi 1018 Pipes
Rating: 4.7 (145 reviews)

Home > products > Seamless Mechanical Tubing >

1 Inch 2 Inch 3" Seamless Mechanical Tubing Steel Grades Smooth Surface Aisi 1018 Pipes

2 inch mechanical tubing

3 mechanical tubing

1 inch mechanical tubing

Document:

Product Brochure PDF

Request A Quote

Product Details

Name:

Seamless Mechanical Tubing

Length:

0.5m-12m

Size:

OD: 10-120mm; WT: 1-20mm

Material:

Stainless Steel, Carbon Steel, Alloy Steel

Application:

Aerospace, Automotive, Medical, Petrochemical, Etc.

Processing:

Cold Drawn, Cold Rolled, Hot Rolled, Honed, Etc.

Standard:

ASTM, DIN, JIS, GB, EN, Etc.

Tolerance:

±0.15mm

Payment & Shipping Terms

RELATED PRODUCTS

86--13003369243

Lydia@fengbaosteels.com

Contact Now

Product Description

Smooth Surface Seamless Mechanical Tubing Tight Tolerance

-- Precise custom outer diameter and inner diameter
-- Tight tolerances, resulting in reduced machine time / Dimensional accuracy
-- Smooth and Clean OD and ID surfaces
-- Excellent machining characteristics
-- Wider range of physical properties attainable through process and annealing options

Specification

Production Range	Outer Diameter:10-120mm (0.4 inch - 4.7 inch)
Production Range	Wall Thickness:1-20mm (0.04 inch - 0.78 inch)
Material / Grade	Carbon Steel: GB/T 8162 & 8163 & 3639: 10#, 20#, 35#, 45#, 55#, Q235B, Q235C, CF53, A105 ASTM A519: 1010, 1020, 1026, 1035, 1045, 1050 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: C10/CK10, C22/CK22, C35/CK35, C45/CK45, CF53 JIS3441/JIS3444/JIS3445: STKM11A, STKM12A/STKM12B/STKM12C, STKM13A/STKM13B/STKM13C JIS G4051: S10C, S20C, S25C, S35C, S45C, S55C
Material / Grade	Alloy Steel: GB/T 8162 & 8163 & 3639: 16Mn(Q345B), 20Cr, 40Cr, 15CrMo, 20CrMo, 28CrMo, 30CrMo, 35CrMo, 42CrMo, 20CrMnTi, 40MnMoV, 20Mn2, ZF6, 16MnCr5, 20MnCr5, 38Mn2V, 09CrCuSb(ND) ASTM A519: 5120, 5140, 4130, 4135, 4140 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: ST52, EN10084-1998 20Cr4, 41Cr4, 15CrMo4, 25CrMo4, 35CrMo4, 42CrMo4, 16MnCr5 JIS3441/JIS3444/JIS3445: SCM432/SCRRM3, SCM4 JIS G4053: JIS SCr420, JIS SCr440, SCM415, SCM420
Tolerance	Tolerance ±0.15mm,Superior products ±0.05mm, Can be customized according to customer's requirements
Technique	Cold Drawn / Cold Rolled / Hot Rolled
Shape	Round
Further Processing for Steel Tubes	Final Annealing, Cutting, Chamfer, Threading, Inner diameter or Outer Diameter Lathe, Surface Shot Blasting, Laser Marking
